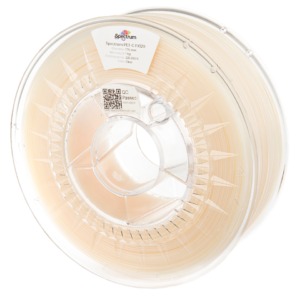

PET-G FX120™

Excellent durability, strength and flexibility

Spectrum PET-G FX120™ is a flexible material, designed especially for engineering applications requiring both the durability of an engineering-class polymer and strength, enabling designers to create rapidly truly functional parts to withstand normal use.

Parts made of Spectrum PET-G FX120™ filament exhibit high chemical resistance, temperature resistance, and can be steam sterilized. The material is adapted to the use of a high level of cooling rate, which makes it possible to obtain a very high-quality surface and a significant reduction of filament stringing. Spectrum PET-G FX120™ can be printed with increased operating speeds, as compared to other elastomers.

Spectrum PET-G FX120™ belongs to the group of rigid elastomers. As a result, it can be effectively used on devices with a Bowden filament feeding mechanism, as well as in more and more popular multi-material printers – then it can be perfectly combined with the classic PET-G filament. The additives used in the development of this material significantly increased the maximum operating temperature – even up to 120°C.

Tip: It is recommended to print using a heated chamber.

Technical data

Material:
PET-G
Available diameter:
1.75 [mm]
Diameter tolerance:
+/- 0.03 [mm]
Density:
1.13 [g/cm3]
Thermal resistance:
VICAT - 170°C
Surface finish:
shiny
Verify your spool:
YES (course of diameter online graph - on the entire length of the spool, mean diameter, ovality, standard deviation individually for each manufactured spool)

How to use

Nozzle temperature:
240-260°C
Bed temperature:
80°C
Recommended printing speed:
30-70 mm/s
Recommended shell thickness:
0.40 - 2.70mm
Recommended layer height:
0.05 - 0.30mm
Cooling:
10-30%
Closed chamber for printing:
recommended
Dry box recommended:
yes
Ruby or hardened nozzle recommended:
no
Adhesive:
recommended (Dimafix, 3DLac, Magigoo)

Material characteristics

  • Dimensional stability
  • Improved aesthetics
  • Excellent temperature resistance
  • Excellent durability
  • A wide processing range
  • Low odour
  • Properties retained in 3D applications
  • Possibility to steam sterilise
  • Styrene-free
  • 95A Shore hardness

Applications

  • production of items to be used as energy adsorbents
  • manufacturing of seals with a high chemical resistance
  • tooling
  • end-use parts
  • product testing
  • elastic damping elements
  • protection against ex. sharp edges
